SP-100/8

Cod EAN: 4007754138849

Hi-fi bass-midrange speaker, 30 W, 8 Ω Robust paper cone High-quality aluminium coil Drilled pole core Rubber surround Excellent radiation and transient response Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKonsul-Smidt-Str. 682...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SP-100/8

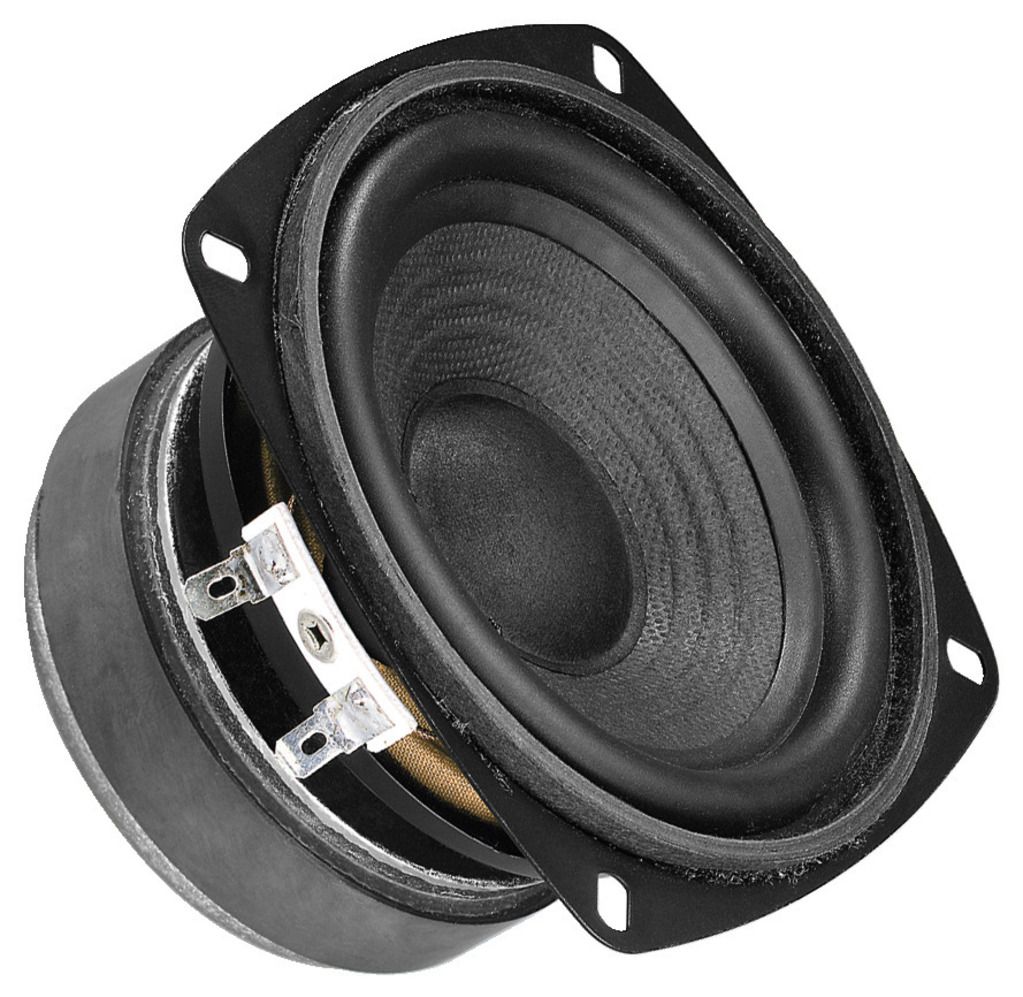

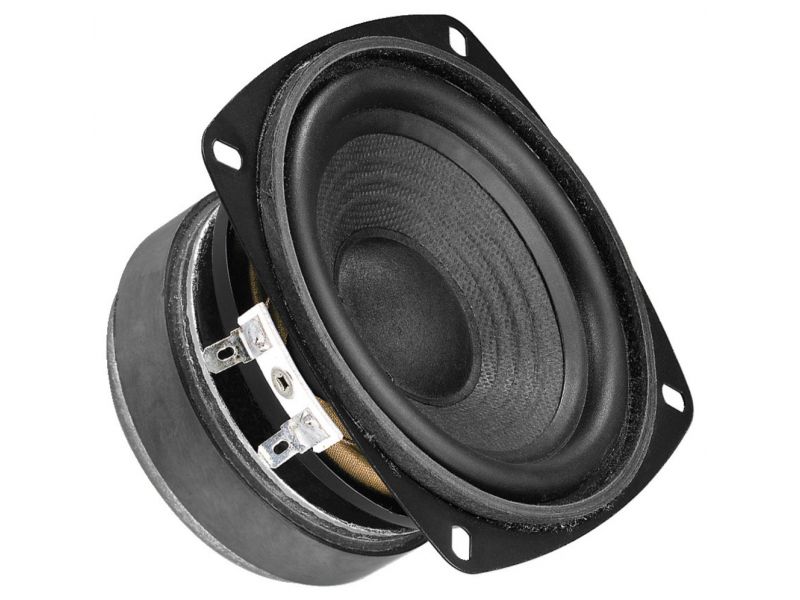

Hi-fi bass-midrange speaker, 30 W, 8 Ω
  • Robust paper cone
  • High-quality aluminium coil
  • Drilled pole core
  • Rubber surround
  • Excellent radiation and transient response
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-7,000 Hz
Resonant frequency (fs) 61 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 60 W
SPL 88 dB/W/m
Suspension compl. (Cms) 1.23 mm/N
Moving mass (Mms) 5.5 g
Mech. Q factor (Qms) 2.28
Electr. Q factor (Qes) 0.44
Total Q factor (Qts) 0.37
Equivalent volume (Vas) 4.7 l
DC resistance (Re) 6.5 Ω
Force factor (BxL) 5.50 Tm
Voice coil induct. (Le) 0.4 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 2.5 mm
Eff. cone area (Sd) 52 cm2
Magnet weight 280 g
Magnet diameter Ø 80 mm

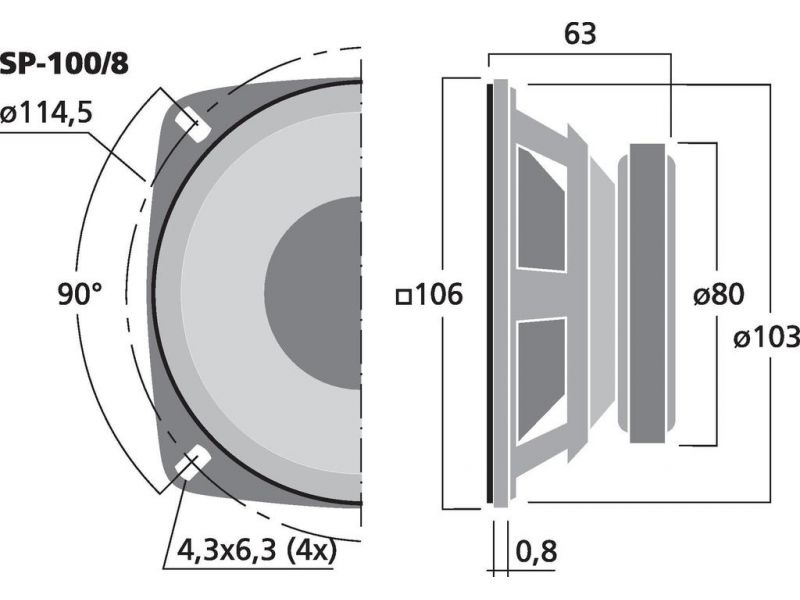

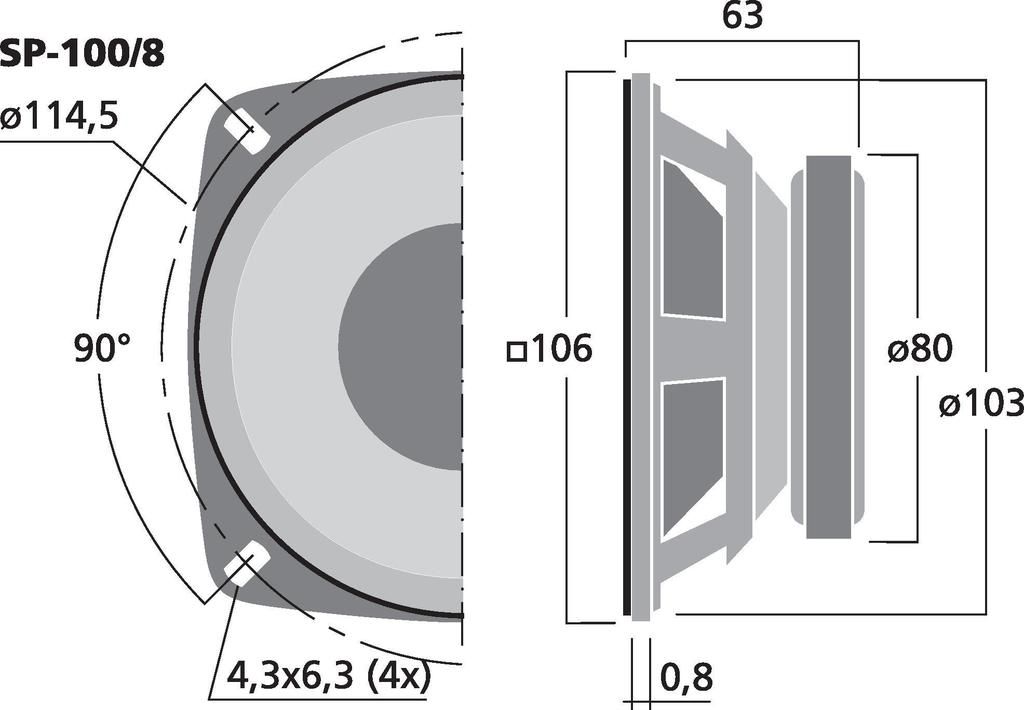

Mounting cutout Ø 103 mm
Mounting depth 62.2 mm
Mounting hole diameter Ø 114.5 mm
Hole spacing X-axis 81 mm
Hole spacing Y-axis 81 mm
Dimensions 106 x 106 x 63 mm
Outside diameter Ø 127 mm
Width 106 mm
Height 106 mm
Depth 63 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.79 kg
Packing unit 1
Type of speaker 4"
Packaging dimensions (W x H x L) 0.115 x 0.065 x 0.115 m
Gross weight 0.835 kg
Net weight 0.795 kg

Fisiere de descarcat

Fisa produsului SP-100/8 konformitaetserklaerung-ce konformitaetserklaerung-ukca
