SP-12/200PA

Cod EAN: 4007754071085

PA bass-midrange speaker, 200 W, 8 Ω Very high efficiency and perfect specifications for use in compact full range speaker systems Can ideally be combined with mid-high range horns Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKo...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SP-12/200PA

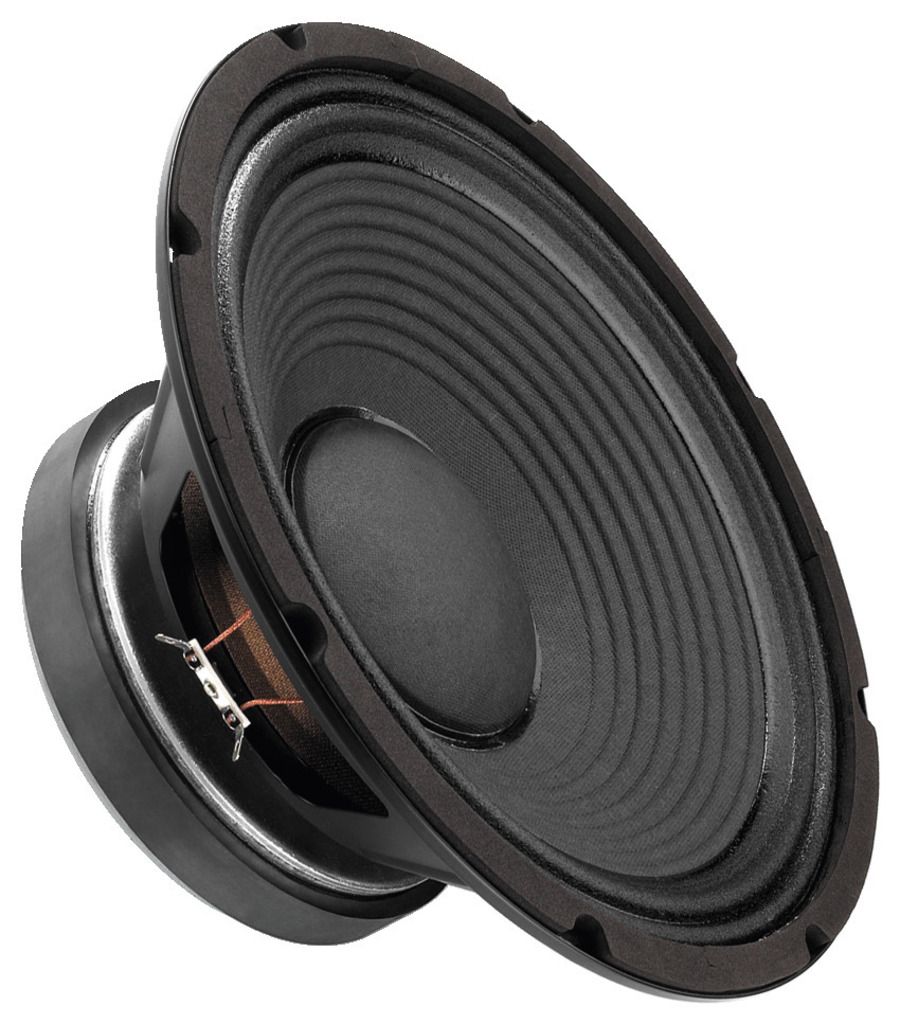

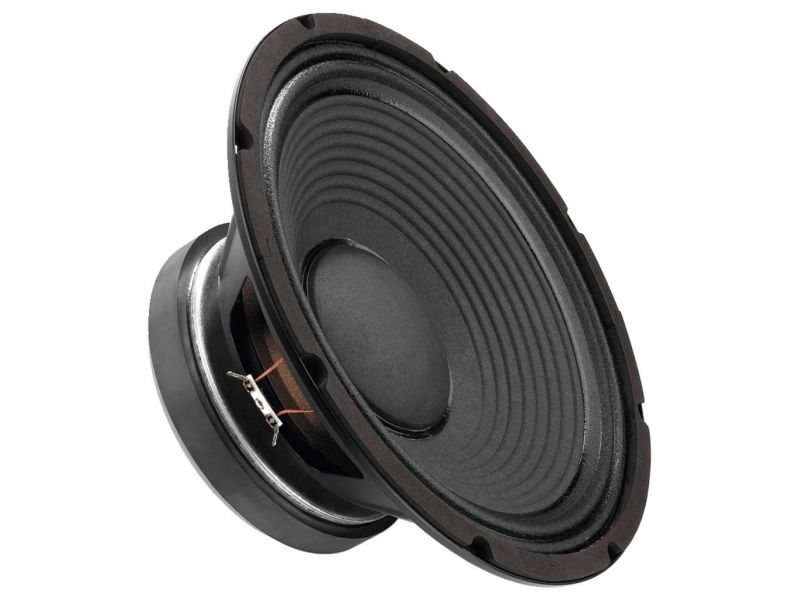

PA bass-midrange speaker, 200 W, 8 Ω
  • Very high efficiency and perfect specifications for use in compact full range speaker systems
  • Can ideally be combined with mid-high range horns
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-5,000 Hz
Resonant frequency (fs) 45 Hz
Power rating (RMS) 200 W
Peak music power output (MAX) 400 W
SPL 100 dB/W/m
Suspension compl. (Cms) 0.29 mm/N
Moving mass (Mms) 43 g
Mech. Q factor (Qms) 5.20
Electr. Q factor (Qes) 0.35
Total Q factor (Qts) 0.33
Equivalent volume (Vas) 114 l
DC resistance (Re) 6.8 Ω
Force factor (BxL) 15.40 Tm
Voice coil induct. (Le) 1.2 mH
Voice coil diameter Ø 78 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 4 mm
Eff. cone area (Sd) 531 cm2
Magnet weight 1.8 kg
Magnet diameter Ø 180 mm

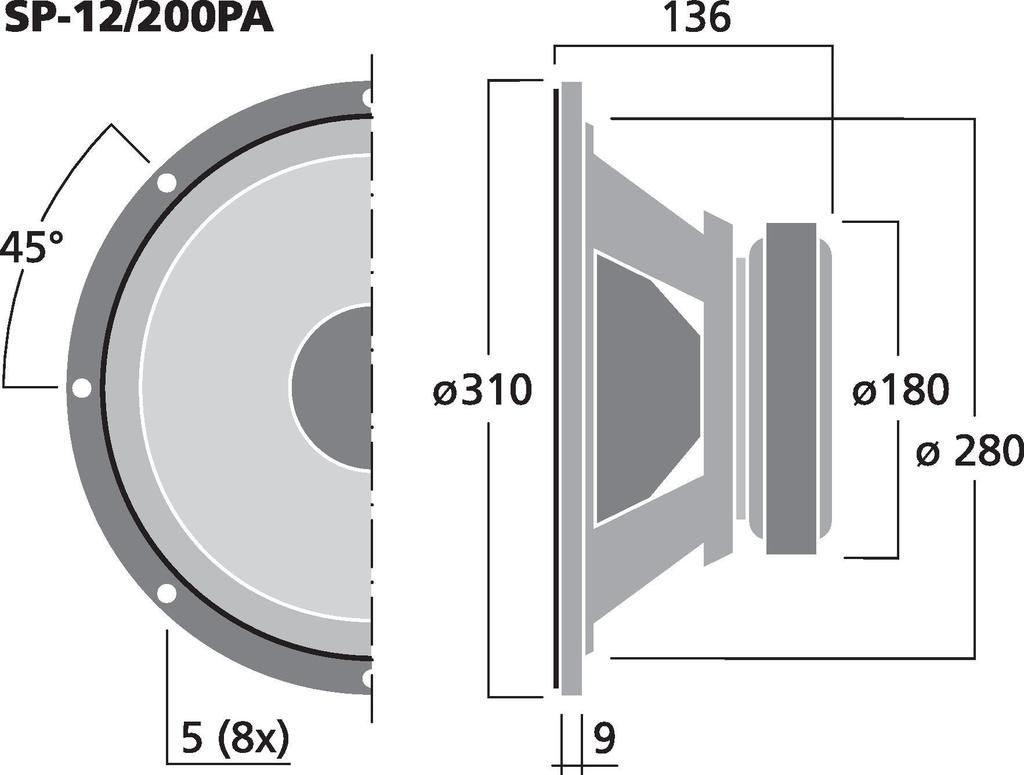

Mounting cutout Ø 280 mm
Mounting depth 125 mm
Dimensions Ø 310 mm x 136 mm
Outside diameter Ø 310 mm
Width Ø 310 mm
Height Ø 310 mm
Depth 136 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 5.74 kg
Packing unit 1
Type of speaker 12"
Packaging dimensions (W x H x L) 0.345 x 0.17 x 0.345 m
Gross weight 6.75 kg
Net weight 5.74 kg

Fisiere de descarcat

Fisa produsului SP-12/200PA konformitaetserklaerung-ce konformitaetserklaerung-ukca
