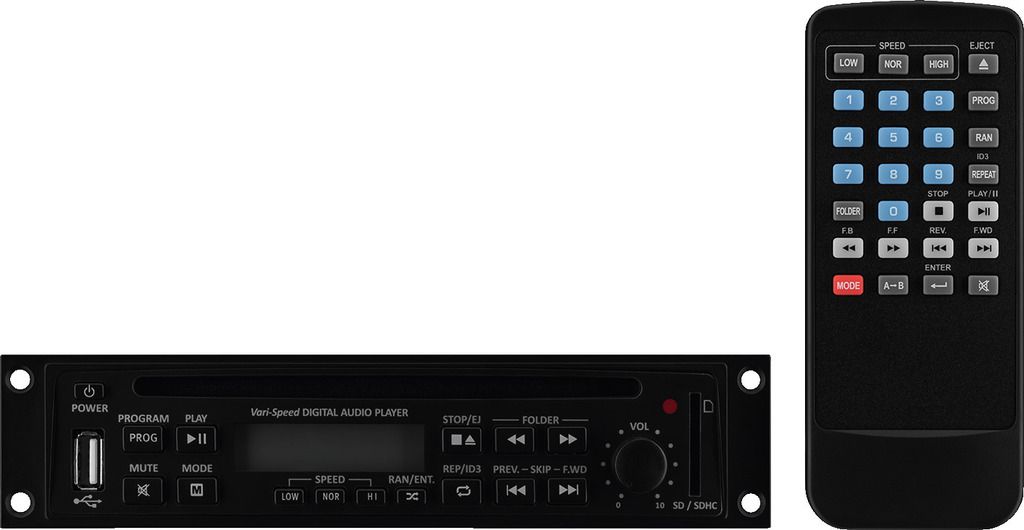

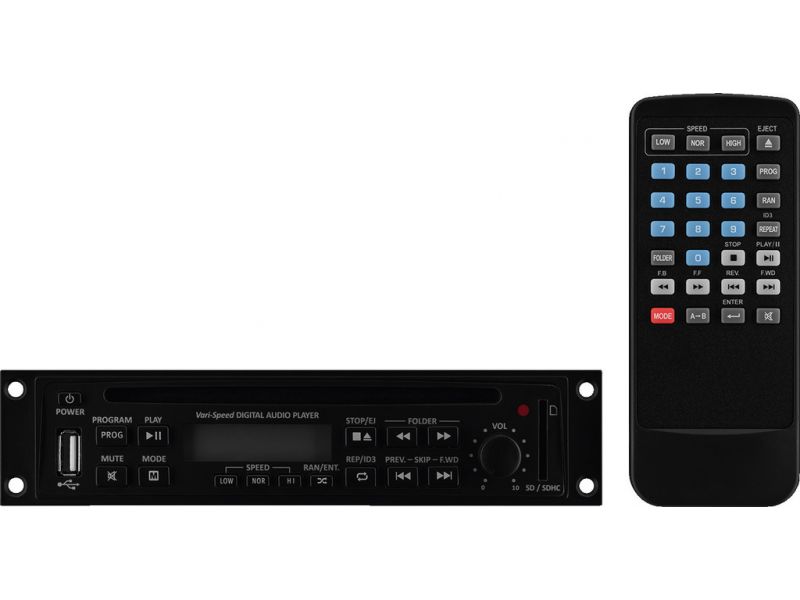

TXA-1802CD

Cod EAN: 4007754261547

CD player insertion module, with anti-shock system and MP3 reproduction. Particularly suitable for the TXA-8xx series Slot-in mechanism SD card reader USB port for external storage media Pitch control function Folder navigation Supplied with remot...

Citeste mai mult

Intreaba despre produs
Cumpara acum


TXA-1802CD

CD player insertion module,
with anti-shock system and MP3 reproduction.
  • Particularly suitable for the TXA-8xx series
  • Slot-in mechanism
  • SD card reader
  • USB port for external storage media
  • Pitch control function
  • Folder navigation
  • Supplied with remote control
  • Mounting cutout: 171 x 42 x 190 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description CD player insertion module
Media CD, MP3, USB, SD, MMC
Output, analogue 1 V
Power supply DC 12 V/1 A
Operating voltage (possible alternative) DC 12 V
Power supply (possible alternative) DC 1 A
Admiss. ambient temp. 0-40 °C
Dimensions 190 x 43 x 190 mm
Weight 1.04 kg
Connections modular jack
Packaging dimensions (W x H x L) 0.225 x 0.045 x 0.23 m
Gross weight 1.208 kg

Fisiere de descarcat

Fisa produsului TXA-1802CD konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
