ATS-85PS
Cod EAN 4007754273854
Charging station, 5 slots, for the ATS-80 series

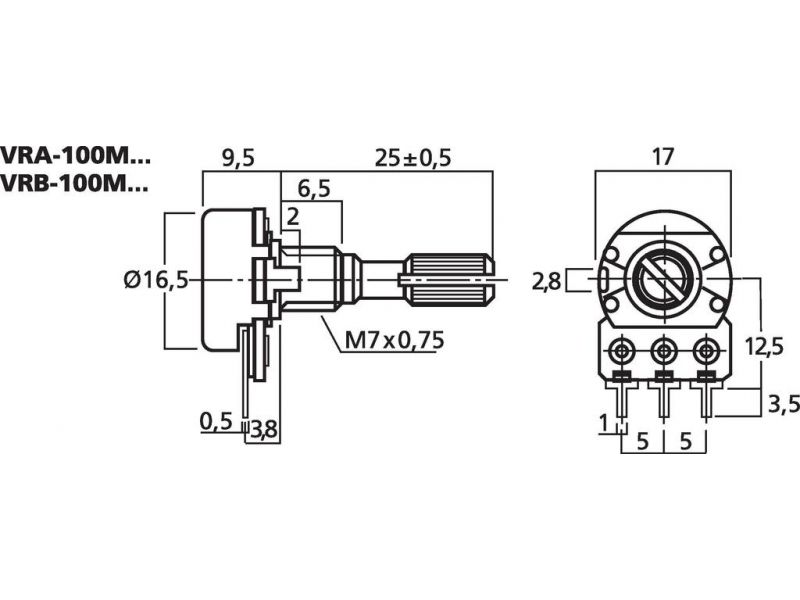

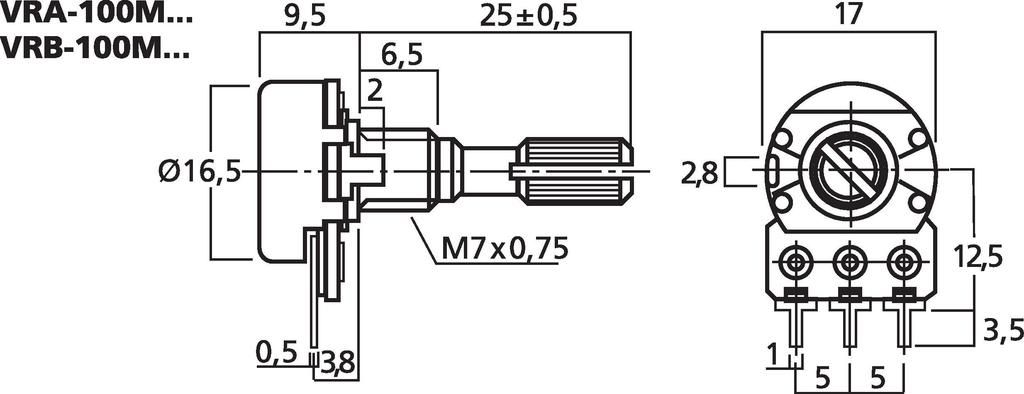

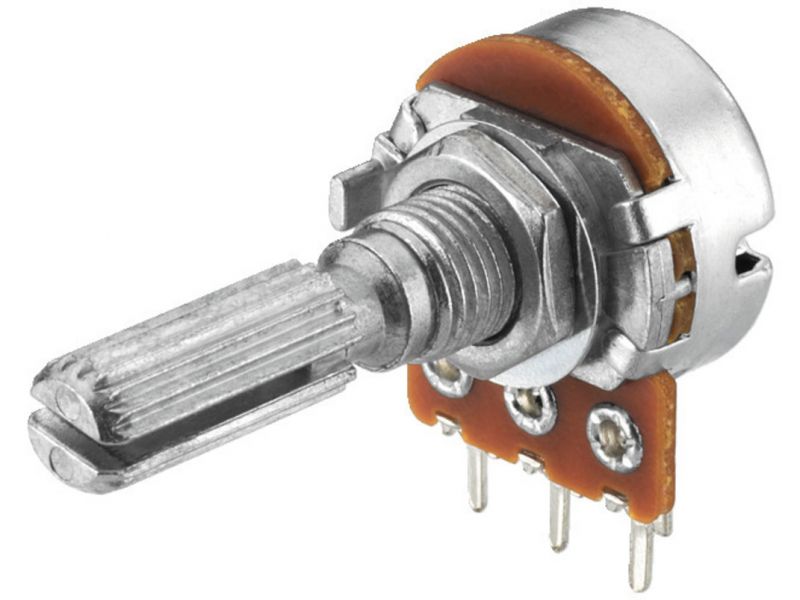

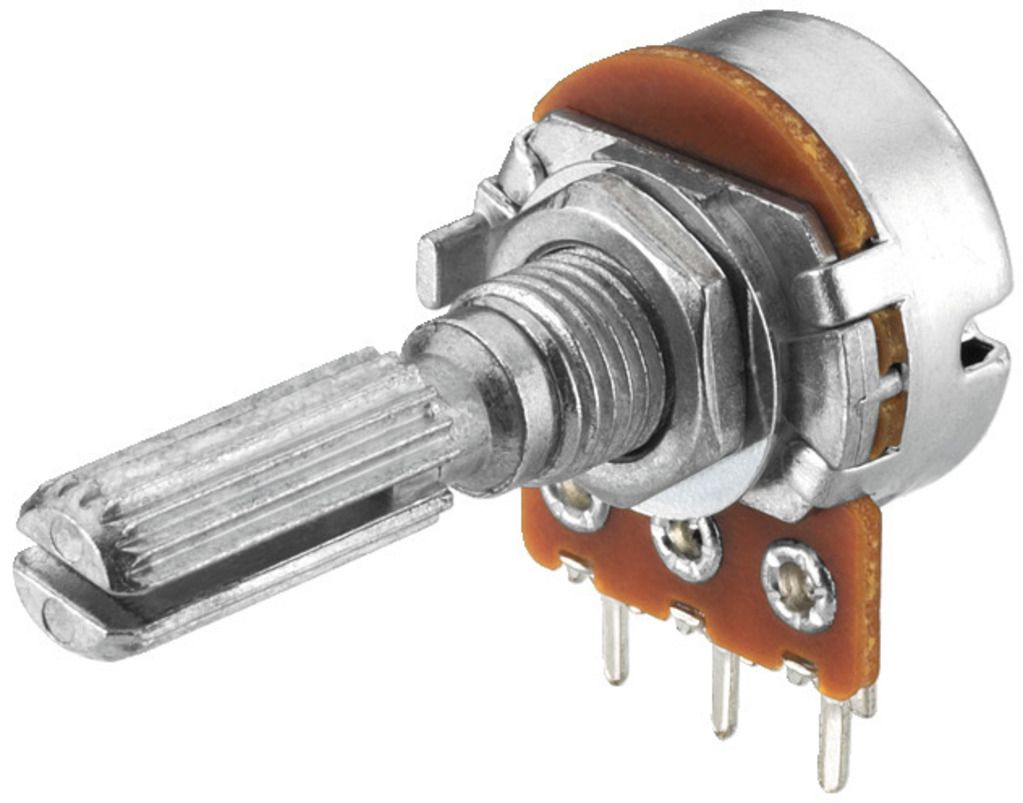

Potentiometer, mono, 500 kΩ Linear Slotted 6 mm shaft For 18-tooth push-on buttons Nut fixing and PCB solder contacts Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKonsul-Smidt-Str. 6828217 BremenGermanyinfo@monacor.com
Resistance | 500 kΩ |
Characteristic | linear |
Power rating | 0.2 W |
Test voltage | ˜ 500 V/1 min. |
Tracking error | ±3 dB, 0/-40 dB |
Rotation angle | 300° ±5° |
