MPX-52PA
Cod EAN 4007754192544
2-zone mixer

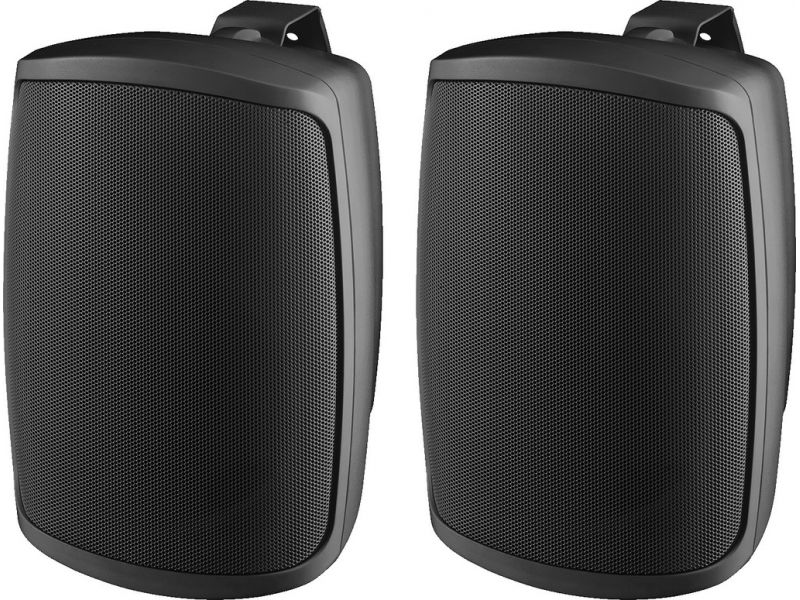

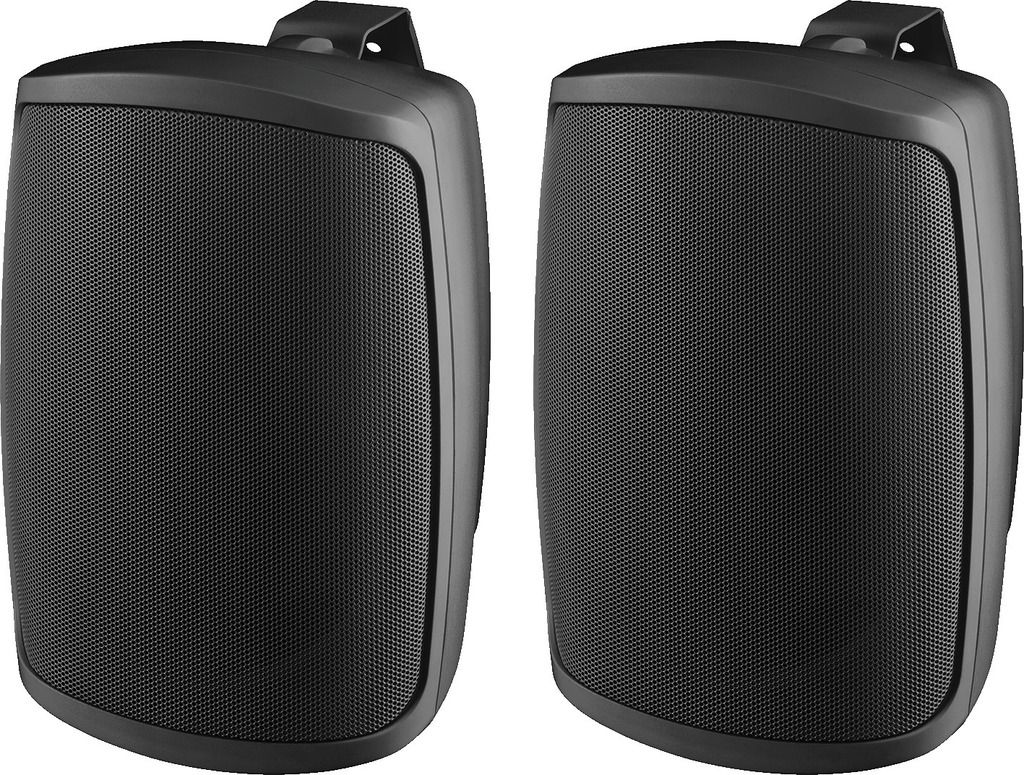

Pair of 2-way PA speaker systems 100 V wall speaker with plastic cabinet in black 4 power taps as well as switchable to 8 Ω operation 20 cm (8") bass-midrange speaker and 25 mm (1") dome tweeter High sound quality and speech intelligibility Mounting...
Active/passive | passive |
Transmission technology | 100 V or low-impedance |
Total power rating | 120 W |
Power rating (RMS) | 50/25/12.5/6.25 W (100 V) 60 W (8 Ω) |
Impedance | 8 Ω |
Frequency range | 35-20,000 Hz |
System | 2-way |
Bass speaker | 20 cm (8") bass-midrange speaker |
Tweeter | 25 mm (1") dome tweeter |
Number of speakers | 2 |
Speaker size | 20 cm (8") |
SPL | 90 dB/W/m |
Max. rated SPL | 106 dB |
Radiation angle/beam angle | H: 100°/V: 80° |
Radiation angle, horizontal | 100° |
Radiation angle, vertical | 80° |
Housing material | plastic |
Colour | black |
Mounting device | mounting bracket |
Protection class | IP65 |
Admiss. ambient temp. | 0-40 °C |

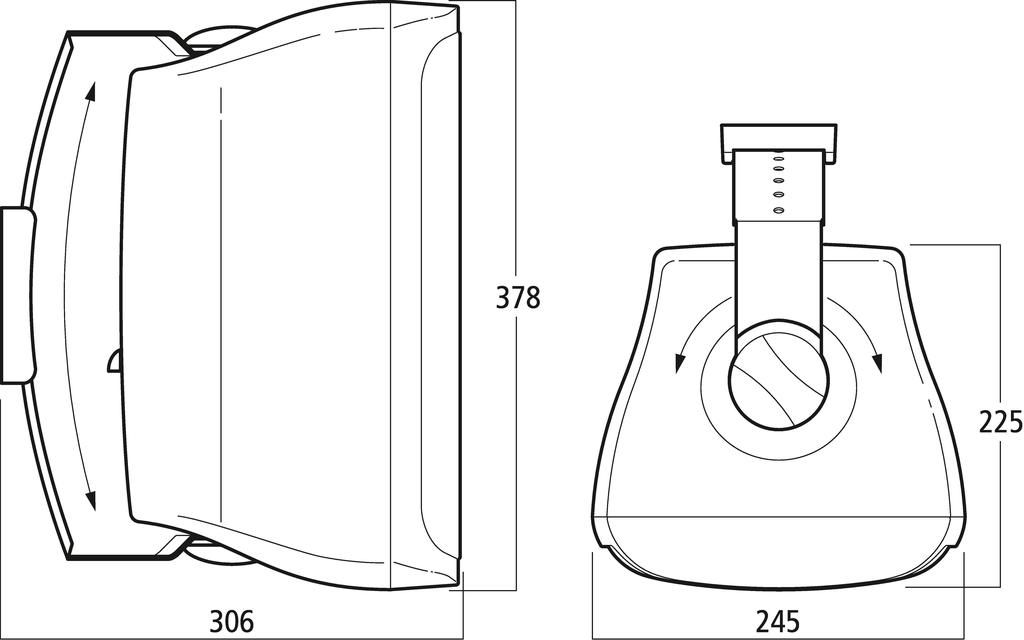

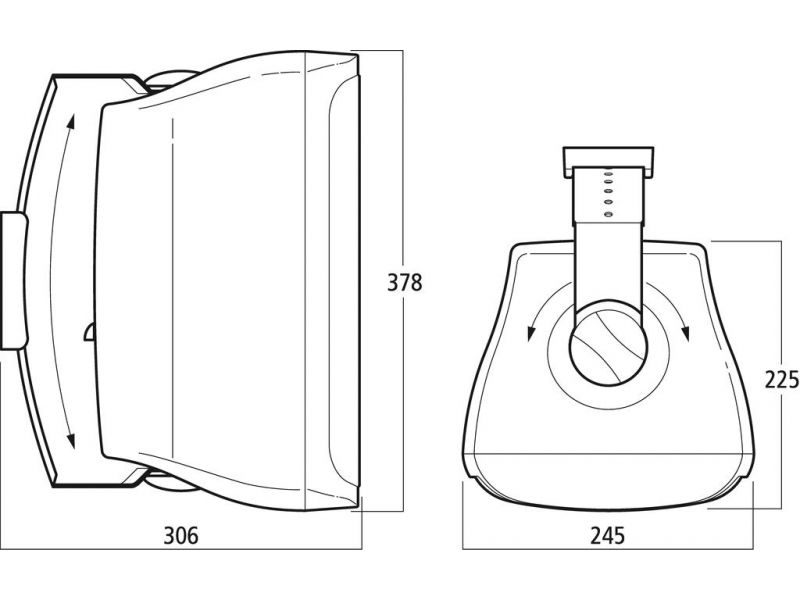

Dimensions | 245 x 378 x 306 mm (with bracket) |
Width | 245 mm |
Height | 378 mm |
Depth | 306 mm |
Weight | 5 kg |
Inputs | spring-loaded speaker terminal |
Other features | for pivoting and tilting |
Packaging dimensions (W x H x L) | 0.29 x 0.41 x 0.59 m |
Gross weight | 12.4 kg |
Net weight | 10.54 kg |
