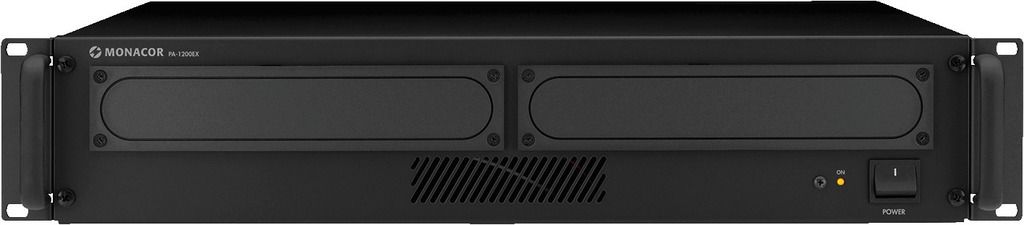

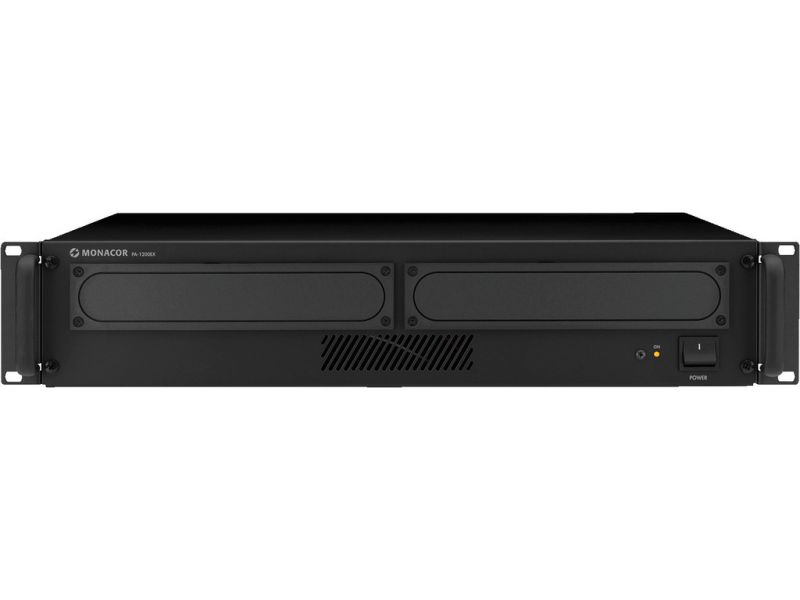

PA-1200EX

Cod EAN: 4007754143225

Dual module extension, for all insertion modules of the PA series. For accepting up to 2 insertions Opening for using insertions with radio reception module XLR connection Mains operation or 24 V emergency power operation 482 mm (19") rack installa...

Citeste mai mult

Intreaba despre produs
Cumpara acum


PA-1200EX

Dual module extension,
for all insertion modules of the PA series.
  • For accepting up to 2 insertions
  • Opening for using insertions with radio reception module
  • XLR connection
  • Mains operation or 24 V emergency power operation
  • 482 mm (19") rack installation with fitted mounting brackets
  • Dimensions without brackets: 425 x 88 x 380 mm, 2 RS
  • Weight: 4.5 kg
  • Power supply: 230 V˜/50 Hz/55 VA or 24 V DC/2 A
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Description dual module extension
Colour black
Suitable for insertion modules of the PA series
Power supply ˜ 230 V/50 Hz/55 VA or 24 V/2 A
Admiss. ambient temp. 0-40 °C
Dimensions 425 x 88 x 380 mm
Weight 4.5 kg
Connections XLR
Packing unit 1
Packaging dimensions (W x H x L) 0.54 x 0.16 x 0.48 m
Gross weight 8.5 kg
Net weight 6.66 kg

Fisiere de descarcat

Fisa produsului PA-1200EX konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
