PA-924

Cod EAN: 4007754254280

Mono PA mixing amplifier 1 x 240 W 4 balanced microphone inputs and line inputs with selectable priority 4 stereo line inputs Speaker outputs via screw terminal contacts Balanced line output Record output Insert facility, e.g. for effect units, equa...

Citeste mai mult

Intreaba despre produs
Cumpara acum

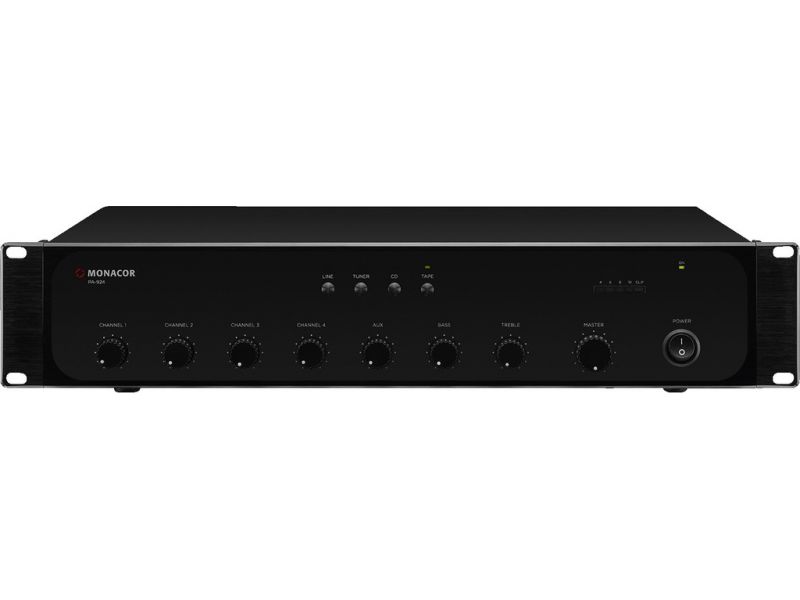

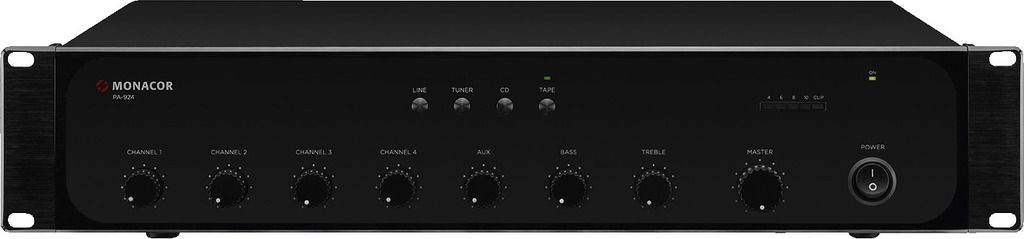

PA-924

Mono PA mixing amplifier
  • 1 x 240 W
  • 4 balanced microphone inputs and line inputs with selectable priority
  • 4 stereo line inputs
  • Speaker outputs via screw terminal contacts
  • Balanced line output
  • Record output
  • Insert facility, e.g. for effect units, equalizers, feedback controllers
  • 2-tone or 4-tone chime, can be activated externally
  • Input level control and output level control
  • 2-way tone control for the output
  • Switchable 48 V phantom power for microphone inputs
  • Temperature-controlled fan
  • Mains operation or 24 V emergency power operation
  • Removable mounting brackets
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Peak output power 340 W
Power rating 240 W
Power rating at 4 Ω 240 W
Power rating at 100 V 240 W
Power rating at 70 V 240 W
Channels 5
Inputs 2.5-100 mV (mic),350 mV (line)
Frequency range 50-16,000 Hz
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 75 dB
THD < 0.1%
Phantom power 48 V
Power supply ˜ 230 V/50 Hz/640 VA, DC 24 V/18 A
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 640 VA
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) DC 18 A
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 95 mm
Depth 390 mm
Rack units, RU 2
Weight 13 kg

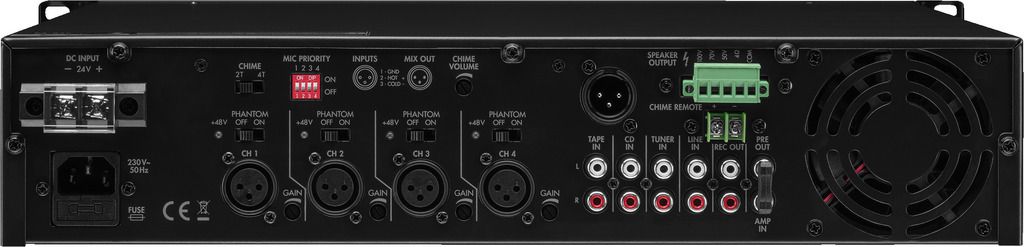

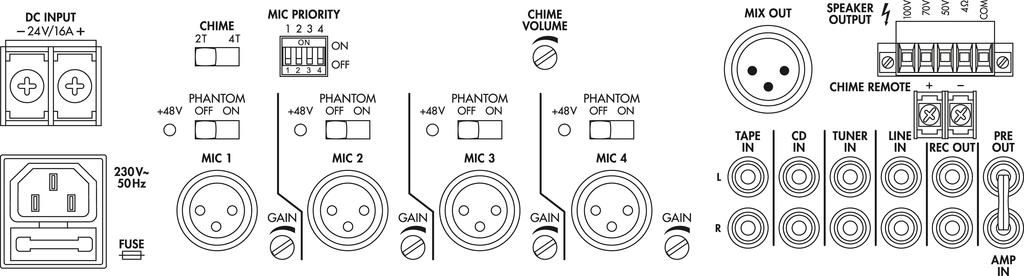

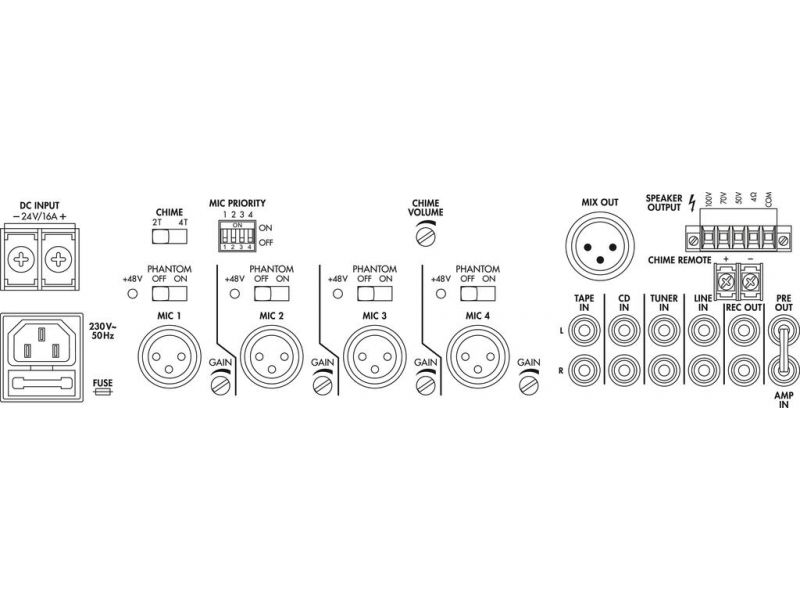

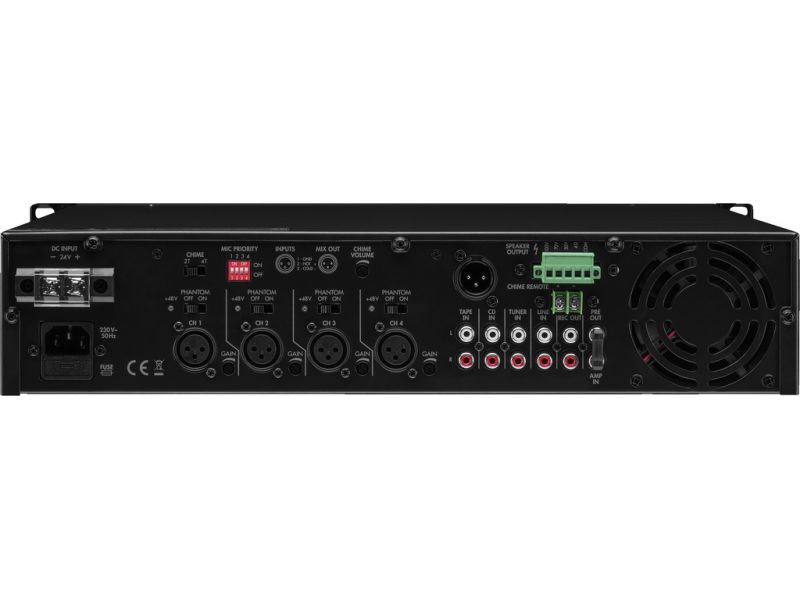

Connections 4 x XLR (mic), 4 x RCA L/R (line), 1 x XLR (line out), 1 x RCA L/R (line out), screw contacts (speakers)
Packaging dimensions (W x H x L) 0.54 x 0.195 x 0.505 m
Gross weight 16.12 kg
Net weight 13.21 kg

Fisiere de descarcat

Fisa produsului PA-924 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
