SA-200
Cod EAN: 4007754249903
Universal stereo amplifier, 100 W Silent operation due to fanless cooling concept Stereo line input Speaker connection via terminal strip LEDs for indicating overload (clip) Volume control 482 mm (19") rack installation, 1 RU, with supplied mounting...

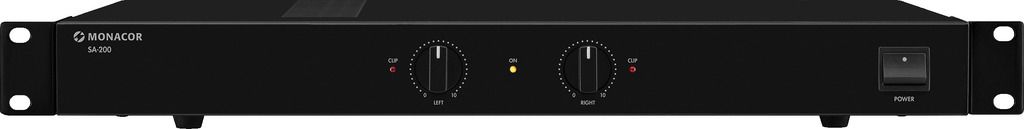

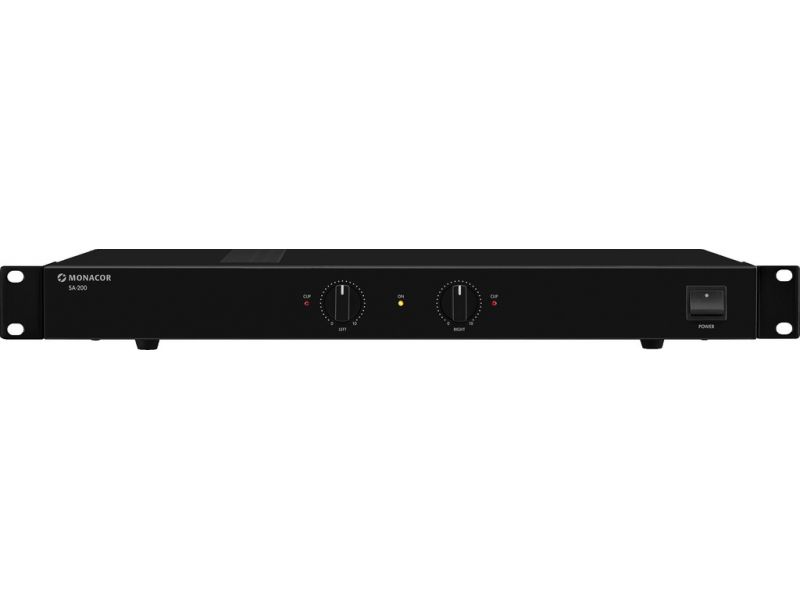

SA-200
Universal stereo amplifier, 100 W
- Silent operation due to fanless cooling concept
- Stereo line input
- Speaker connection via terminal strip
- LEDs for indicating overload (clip)
- Volume control
- 482 mm (19") rack installation, 1 RU, with supplied mounting brackets
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Warning and Safety Instructions
The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.
Parametrii
| Peak output power | 2 x 100 W |
| Power rating | 100 W |
| Power rating at 4 Ω | 2 x 50 W |
| Power rating at 8 Ω | 2 x 30 W |
| Channels | 2 |
| Inputs | 420 mV/6 kΩ |
| Frequency range | 20-20,000 Hz |
| S/N ratio | > 83 dB |
| Power supply | ˜ 230 V/50 Hz/210 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 210 VA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 431 mm |
| Height | 55 mm |
| Depth | 255 mm |
| Rack units, RU | 1 |
| Weight | 4.4 kg |

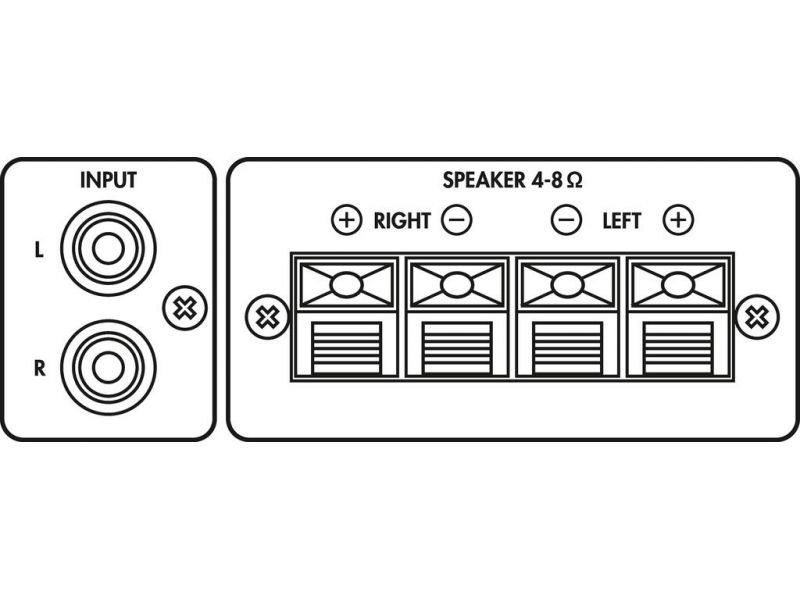

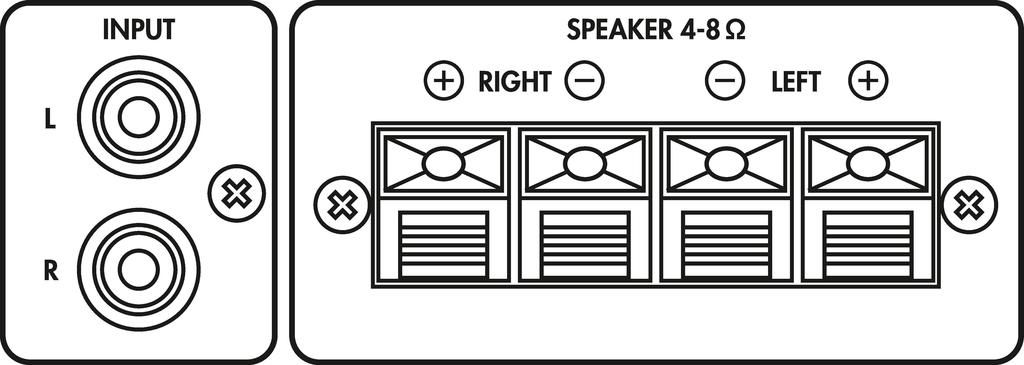

| Connections | 1 x RCA L/R (line),4 x spring-load. speaker term.(speakers) |
| Packaging dimensions (W x H x L) | 0.335 x 0.11 x 0.46 m |
| Gross weight | 4.89 kg |
| Net weight | 4.44 kg |
